Vintage DIY Camper Plans – 16-Foot 'Family Trailer'

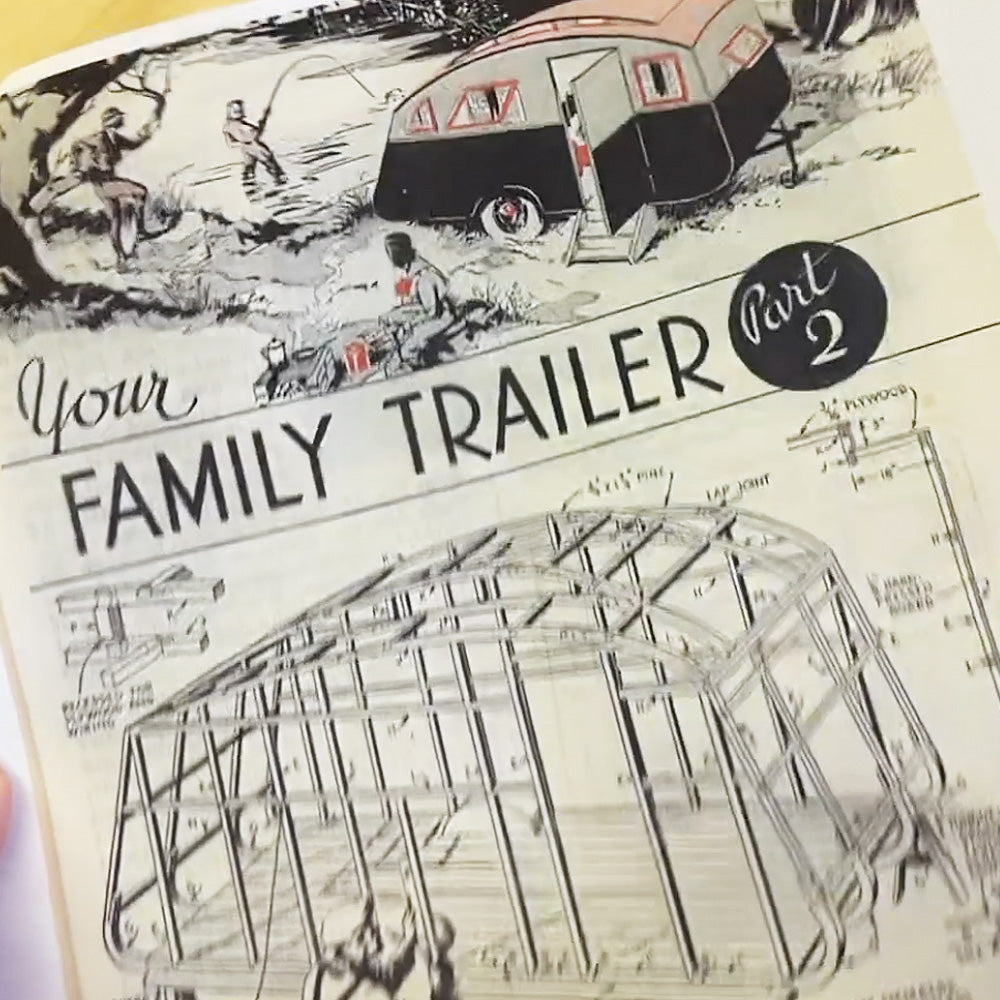

Reproduction of circa 1940 vintage magazine plans for a ~16-foot “Family Trailer” – a streamlined, home-built touring trailer offering all the comforts of a mid-century mobile home. Ideal for historians, restorers, and DIY enthusiasts seeking insight into the craftsmanship of early American trailer design.

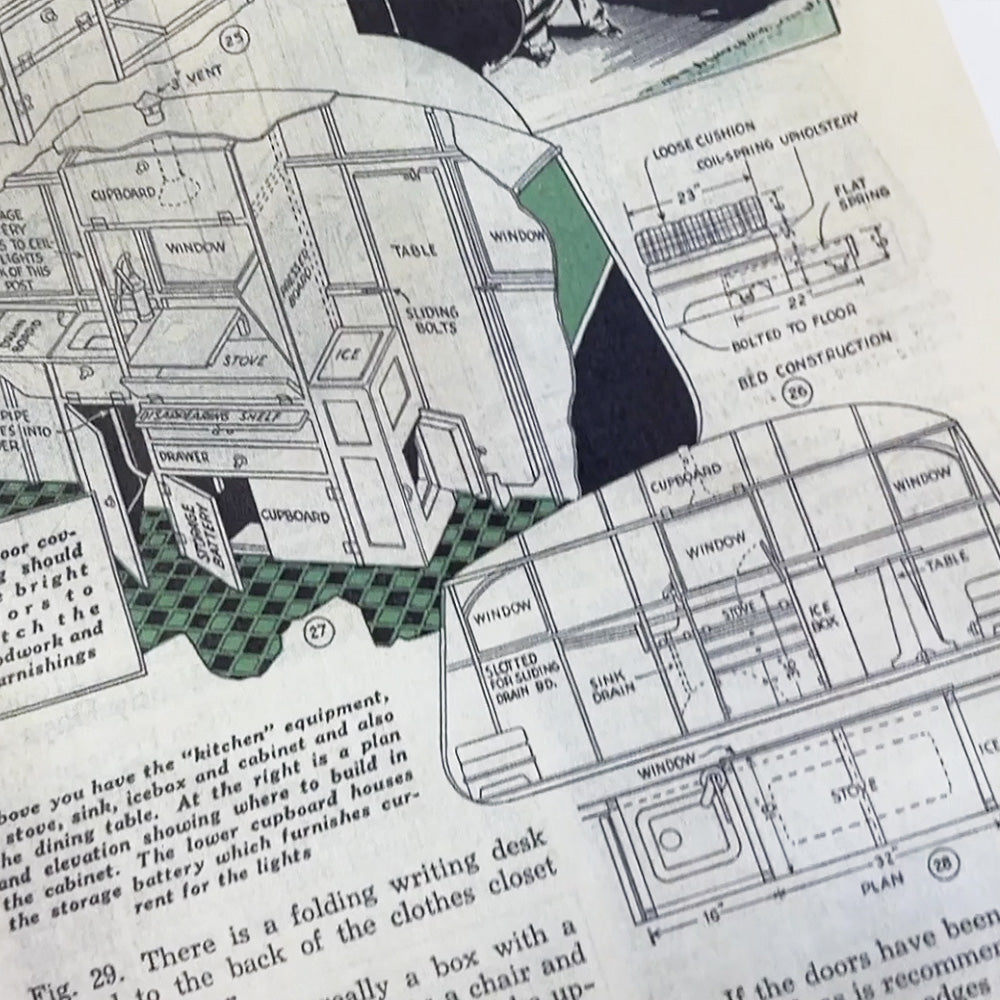

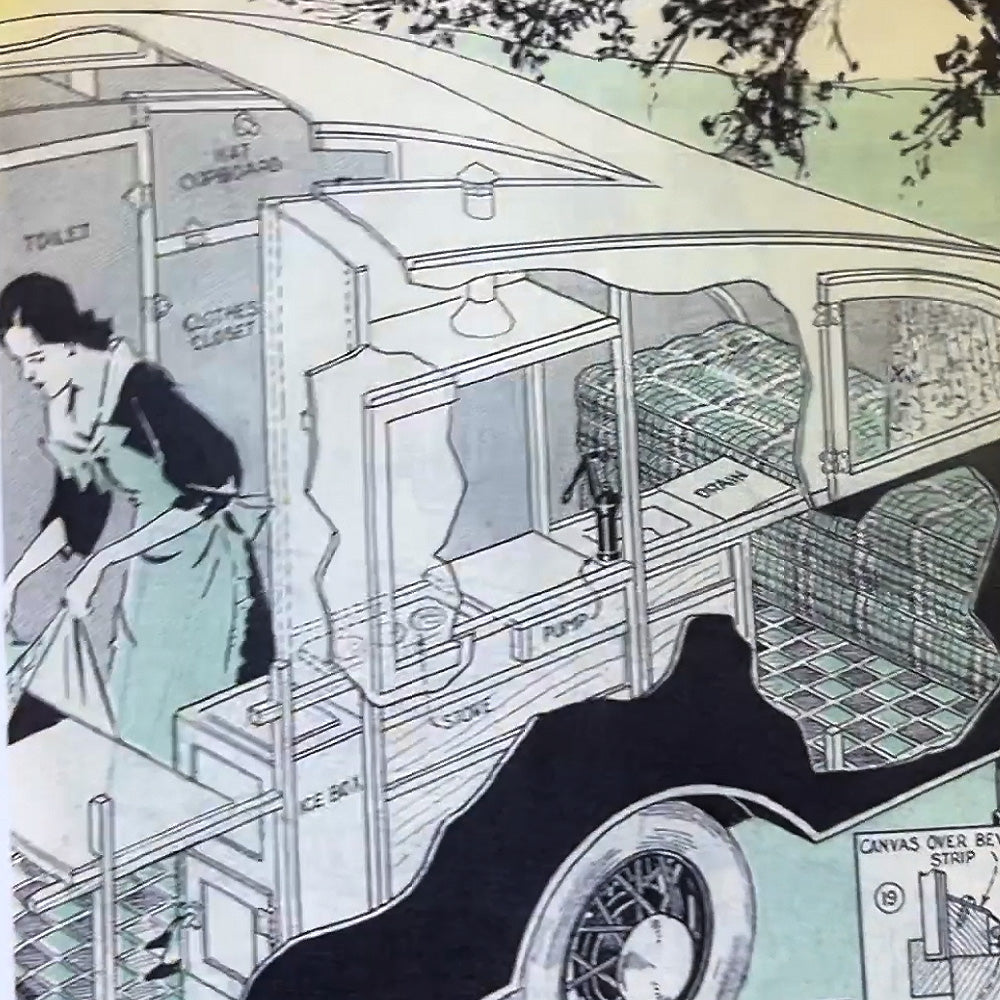

Designed for balanced weight distribution and smooth towing, the trailer features a compact galley with cookstove, sink, icebox, and clothes closet, plus ample screened windows for ventilation. Its low, underslung tubular axle keeps the center of gravity close to the road for exceptional “roadability,” while the roomy, lightweight body was intended for easy construction by skilled hobbyists.

Instant Download

This is a digital product only. No physical items will be shipped. You'll receive an instant download link at checkout.

For Reference Only — Not Intended as Modern Construction Plans

For Inspiration & Ideas:

⚠️ Disclaimer: These vintage trailer plans are provided as historical reference material only. They were originally published many decades ago and do not reflect modern building codes, roadworthiness requirements, or current safety standards. They are not intended to serve as complete, engineered construction documents. By purchasing and/or downloading these plans, you acknowledge that they are offered “as is” for educational and informational purposes only. Any use of these materials in an actual build project is solely at your own risk.

Project plans and templates are sold as-is with no warranty, technical support, or guarantee of suitability for the buyer.
